2TLA020070R1400

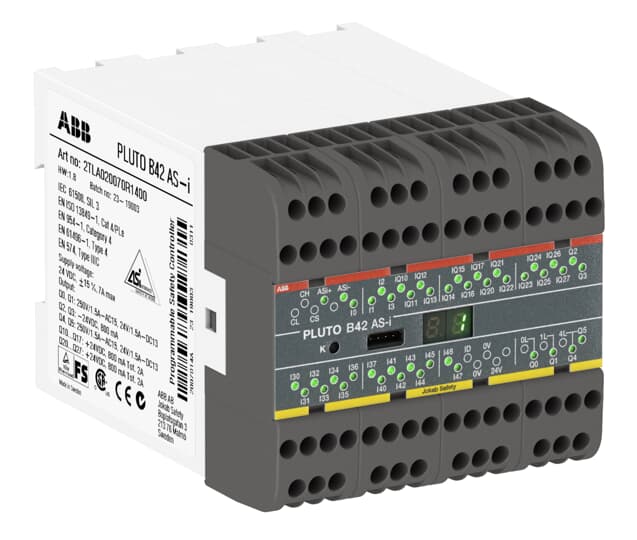

Pluto B42 AS-i Programmable safety controller ABB Safety Controllers
Pluto is a cost effective, powerful and compact safety PLC for all machine safety applications. Most safety devices on the market can be connected directly to Pluto and multiple safety sensors can be connected to a single input and still achieve the highest safety level. Programming is done easily in the accompanying software Pluto Manager.
Safety PLC with AS-i bus and Pluto safety bus. Totally 42 I/O: 20 failsafe inputs + 16 non-failsafe outputs/failsafe inputs + 4 individually failsafe relay outputs + 2 individually failsafe transistor outputs.
Dimensions
-
- Product Net Depth / Length:
- 120 mm
-
- Product Net Height:
- 84 mm
-
- Product Net Width:
- 90 mm
-
- Product Net Weight:
- 0.65 kg
Safety Information
-
- Performance Level (PL):
- Up to e
Technical
-
- Diagnostic Coverage:
- High
-
- Number of Inputs:
- Failsafe 36
-
- Number of Outputs:
- Failsafe (Transistor) 2
Failsafe (Relay) 4
Non-Failsafe 16
-
- Protocol Type:
- MODBUS ASCII, Pluto Safety Bus, AS-i, StatusBus
-
- Rated Control Supply Voltage (Us):
- 24 V DC
-
- Supply Voltage:
- 24 V DC
