2TLA022302R0700 ABB Jokab Safety Orion1-4-30-120-B Safety light curtain

2TLA022302R0700

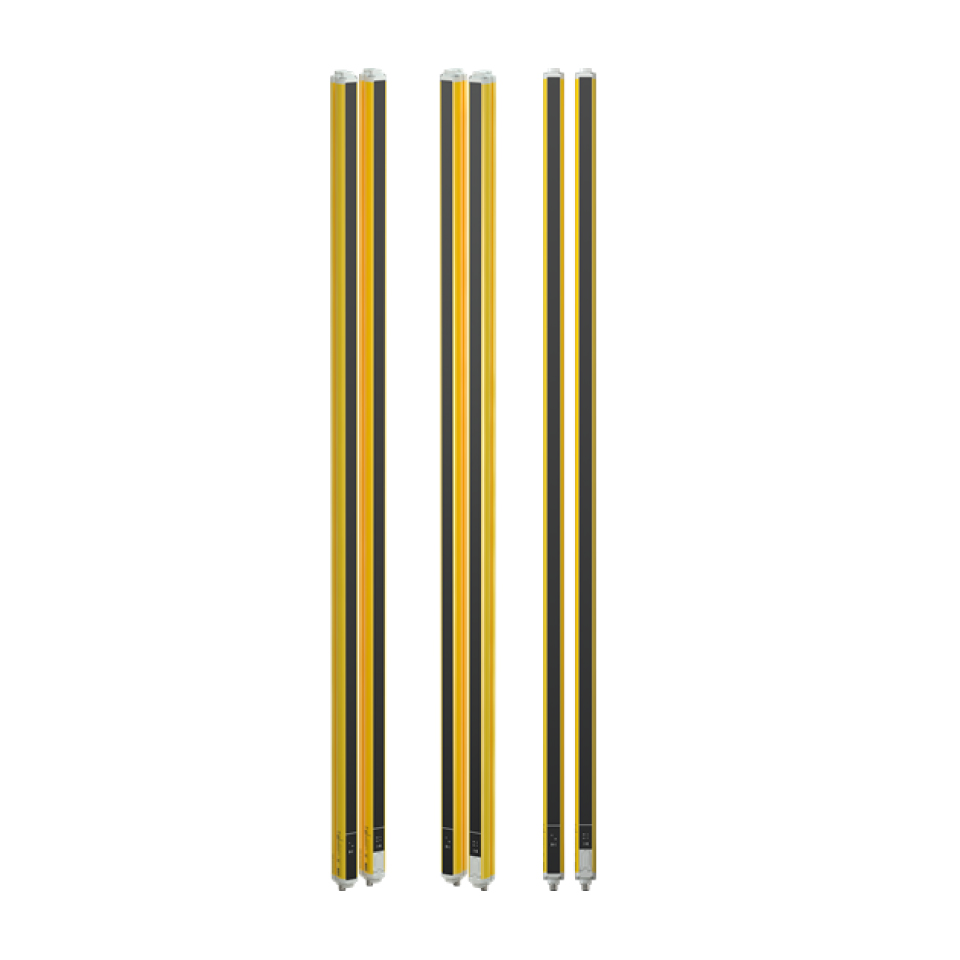

ABB Jokab Safety Orion1-4-30-120-B Safety light curtain

Orion1 Base Light Curtain, Transmitter + Receiver, Resolution=30mm (hand), Protected height=1200mm, Range=0.2-19m, Type 4.

Orion1 Base is an easy to use light curtain with compact dimensions and two resolutions for detection of fingers and hands. Light curtains are usually used closed to the hazardous zone when repeated access to the machine is necessary, for example manually serviced machines. Light curtains can also be used to limit work zones inside the hazardous area and be mounted horizontally for area protection.

รหัสสินค้า: 2TLA022302R0700 หมวดหมู่:

2TLA022302R0700

ABB Jokab Safety Orion1-4-30-120-B Safety light curtain

Orion1 Base Light Curtain, Transmitter + Receiver, Resolution=30mm (hand), Protected height=1200mm, Range=0.2-19m, Type 4.

ABB Orion1 Light Curtains



The Orion1 light curtains from ABB are supplied with a transmitter and receiver. They can be installed close to a dangerous machine and are designed for finger or hand detection. The Orion1 is available in two options, a base model and an extended model.



Features and Benefits



No more functions or settings than necessary
A local reset button can be connected directly to the light curtain: no need for cable between the reset button and the electrical cabinet or for an extra control module.
Each light curtain can monitor the actuators without any extra control module (EDM function)
Alignment help and a wide angle within the limits of a Type 4 device facilitate alignment
Rotation brackets simplify alignment too
M12 connectors speed up cabling
The alignment level being displayed, the alignment can be improved before the occurrence of the unwanted stop
Extensive error indication reduces troubleshooting time
Protective tubes and lens shields protect the devices in harsh environments
Muting sensors are connected directly to the extended model, with no need for a remote extra muting module
6 m and 19 m operating distances (finger and hand detection)
Compact dimensions



Applications



Finger and hand detection
When the light guard is required to be close to the hazardous zone
When repeated access to the machine is necessary, manually serviced machines for example
For area protection (horizontal mounting) and limitation of work zones



Note

Both the base and extended models provide detection, local reset and external device monitoring (EDM), but the extended model also provides muting.

Standards

EN ISO 13849-1:2008 PL e, Cat 4
EN 61508-1..4:2010 SIL3
EN 62061:2005/A1:2013 SIL CL 3

Approvals

CE, cULus, TUV.

Light Curtain

Dimensions

  • Product Net Depth / Length:
    37 mm
  • Product Net Height:
    1.28 m
  • Product Net Width:
    65 mm
  • Product Net Weight:
    3.336 kg

Technical

  • Device Resolution:
    30 mm
  • Operating Distance (Sn):
    0.2…19
  • Optical Field Protected Height:
    1200 mm
  • Type of Optical Detection:
    Finger and hand without muting
