2TLA030053R0000

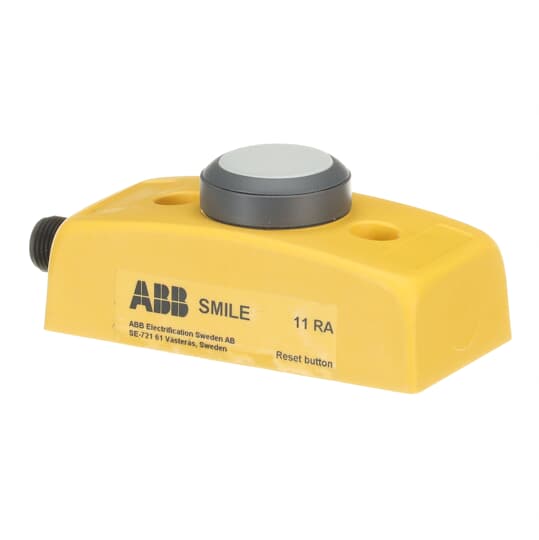

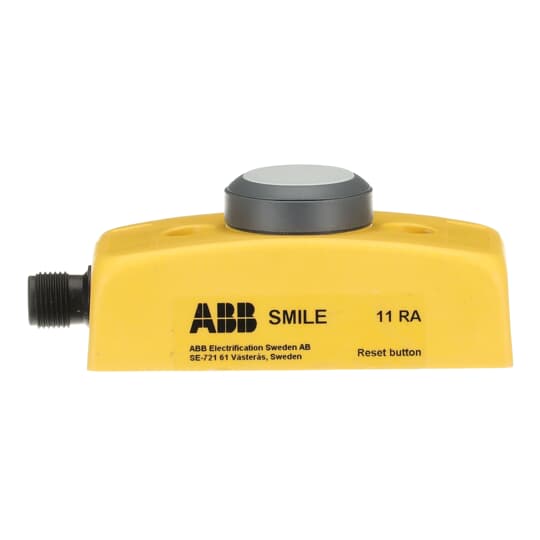

Smile 11 RA Reset button ABB Jokab Safety
Reset button in Smile enclosure, 1 x NO button, 1 x Blue LED, 1 x M12-5 male connector.
Dimensions
-
- Product Net Depth / Length:
- 36 mm
-
- Product Net Height:
- 97 mm
-
- Product Net Width:
- 40 mm
-
- Product Net Weight:
- 0.06 kg
ABB Jokab Emergency Button
The ABB Jokab Smile 11 RA M12-5 reset mushroom head button has a 32mm mount diameter for local reset of Adam reset. It has 5 pins and a blue LED for status indication. The housing is made from polyamide PA66, macromelt, polybutylene terephthalate PBT and polypropene PP materials.
Features and Benefits
• 1xM12 5-pin male connector electrical connections
• Compact design
• NO contact configuration
• Operating temperature ranges between -10°C and 55°C
• Panel mount
• Turn-to-release contact type
• Compact design
• NO contact configuration
• Operating temperature ranges between -10°C and 55°C
• Panel mount
• Turn-to-release contact type
Applications
• Factories
• Industrial automation
• Power plants
• Safety circuits
• Industrial automation
• Power plants
• Safety circuits
Certifications
• CE certified
• IP65 rated
| คุณสมบัติ | Value |
| Mounting Type | Panel Mount |
| Contact Configuration | 1NO |
| Push Button Actuation | Twist Release |
| Illuminated | Yes |
| Series | Smile 11 RA |
| IP Rating | IP65 |
| Voltage Rating | 27V dc |
| Depth | 52mm |
| Width | 40mm |
| Height | 84mm |
| Pole and Throw Configuration | 1P |
