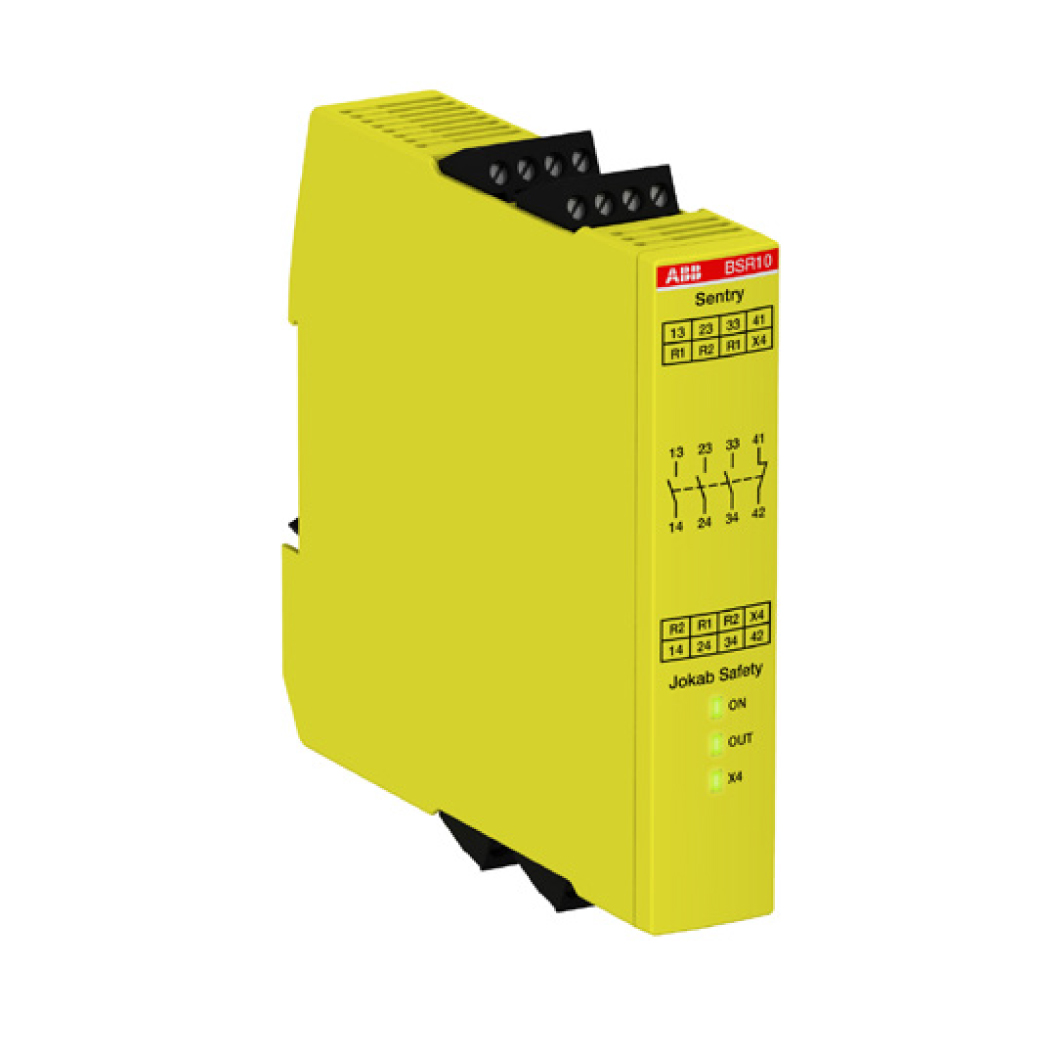

Sentry BSR10 24VDC
General Information
-
- Extended Product Type:
- Sentry BSR10 24VDC
-
- Product ID:
- 2TLA010040R0000
-
- EAN:
- 7350024483253
-
- Catalog Description:
- Safety/Expansion Relay Sentry BSR10 24VDC – 24 volt DC – 3 NO + 1 NC – No Time Delay
-
- Long Description:
- BSR10 is a safety relay and expansion relay with relay outputs, 3 NO + 1 NC, and a +24 VDC supply voltage.
BSR10 is designed to connect safety devices, such as emergency stops, directly in the voltage supply circuit of the relay.
BSR10 is also suitable as expansion relay for a safety relay/ safety PLC, in order to increase the number of safe outputs.
| Sentry BSR10 | 2TLA010040R0000 | BSR | Safety relay | Safety relay and expansion relay with relay outputs 3NO+1NC, +24 VDC supply voltage and screw terminals. For monitoring of safety devices, such as emergency stops, directly in the voltage supply circuit of the relay. Also suitable as expansion relay for a safety relay/ safety PLC, in order to increase the number of safe outputs. |
| Sentry BSR10P | 2TLA010040R0001 | BSR | Safety relay | Safety relay and expansion relay with relay outputs 3NO+1NC, +24 VDC supply voltage and push-in spring terminals. For monitoring of safety devices, such as emergency stops, directly in the voltage supply circuit of the relay. Also suitable as expansion relay for a safety relay/ safety PLC, in order to increase the number of safe outputs. |
| Sentry BSR11 | 2TLA010040R0200 | BSR | Safety relay | Safety relay and expansion relay with relay outputs 4NO, +24 VDC supply voltage and screw terminals. For monitoring of safety devices, such as emergency stops, directly in the voltage supply circuit of the relay. Also suitable as expansion relay for a safety relay/safety PLC, in order to increase the number of safe outputs. |
| Sentry BSR11P | 2TLA010040R0201 | BSR | Safety relay | Safety relay and expansion relay with relay outputs 4NO, +24 VDC supply voltage and push-in spring terminals. For monitoring of safety devices, such as emergency stops, directly in the voltage supply circuit of the relay. Also suitable as expansion relay for a safety relay/safety PLC, in order to increase the number of safe outputs. |
| Sentry BSR23 | 2TLA010041R0600 | BSR | Safety relay | Expansion relay with relay outputs 4NO+1NC, +24 VDC supply voltage and screw terminals. Used as expansion relay for a safety relay/safety PLC, in order to increase the number of safe outputs. |
| Sentry BSR23P | 2TLA010041R0601 | BSR | Safety relay | Safety expansion relay with relay outputs 4NO+1NC, +24 VDC supply voltage and push-in spring terminals. Used as expansion relay for a safety relay/safety PLC, in order to increase the number of safe outputs. |
