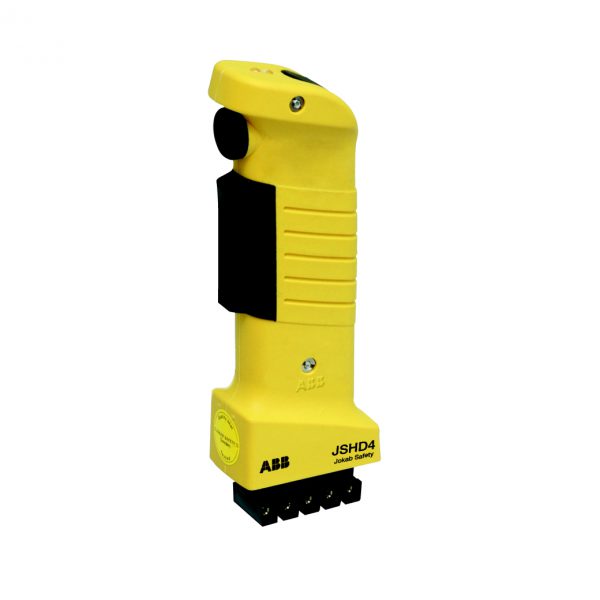

ABB JOKAB SAFETY JSHD4

JSHD4

ABB JSHD4

Ergonomic and adaptable three-position device

Three-position devices (or hold-to-run devices) can be used for troubleshooting, programming and test running in situations where no other protection is available or feasible. With a three-position device the operator can either press harder in an emergency or release the device to stop the machine.

Main benefits

  • Ergonomic
  • Adaptable
  • Easy safe connection with AS-i
  • Anti-tampering option for more safety

Main features

  • Modular device
  • Up to 2 extra buttons
  • M12 and other types of connection
  • Model with emergency stop button
  • Up to PL e/Cat 4
หมวดหมู่: ,



JSHD4-1-AA 2TLA019995R0000 JSHD4 Three-position device complete Three-position device. Top part with no LED, no extra buttons. Bottom part with cable gland.
JSHD4-1-AC 2TLA019995R0100 JSHD4 Three-position device complete Three-position device. Top part with no LED, no extra buttons. Bottom part with M12-5 connector.
JSHD4-2-AB 2TLA019995R0200 JSHD4 Three-position device complete Three-position device. Top part with LEDs, front button and top button. Bottom part with Cannon connector.
JSHD4-2-AD 2TLA019995R0400 JSHD4 Three-position device complete Three-position device. Top part with LEDs, front button and top button. Bottom part with M12-8 connector.
JSHD4-2-AH 2TLA019995R0800 JSHD4 Three-position device complete Three-position device. Top part with LEDs, front button and top button. Bottom part with cable gland and PCB with 10 screw connections.
JSHD4-3-AH 2TLA019995R2000 JSHD4 Three-position device complete Three-position device. Top part with LEDs and no extra buttons. Bottom part with cable gland and PCB with 10 screw connections.
JSHD4-2-AK 2TLA019995R4800 JSHD4 Three-position device complete Three-position device. Top part with LEDs, front button and top button. Bottom part with Cannon connector. Mainly for replacement of older non modular JSHD4 enabling device (Jokab brand).
JSHD2C type E 2TLA020001R1000 JSHD2 Three-position push button JSHD2C type E 3-position pushbutton, 3 cables 200mm, Au, IP54
JSHD2C type A 2TLA020001R1100 JSHD2 Three-position push button JSHD2C type A 3-position pushbutton, 3 cables 190mm, Au, IP40
JSHD2C type K 2TLA020001R1300 JSHD2 Three-position push button JSHD2C type K 3-position pushbutton, 2 cables 290mm, Ag, IP54
JSHD2C type F 2TLA020001R1400 JSHD2 Three-position push button JSHD2C type F 3-position pushbutton, 3 cables 850mm, Au, IP54
JSHD4H2A 0,15m 2TLA020002R0200 JSHD4H2 Three-position device external mounting JSHD4H2A Three-position control device for external panel mounting. 6x150mm leads.
JSHD4H2B 0,15m 2TLA020002R0210 JSHD4H2 Three-position device external mounting JSHD4H2B Three-position control device for external panel mounting. 6x150mm leads.
JSHD4H2 0,15m 2TLA020002R3100 JSHD4H2 Three-position device external mounting JSHD4H2 Three-position control device for internal panel mounting. 6x150mm leads.
JSHD4H2 1,2m 2TLA020002R4500 JSHD4H2 Three-position device external mounting JSHD4H2 Three-position control device for internal panel mounting. 6x1200mm leads.
JSHK0 2TLA020003R0300 JSHD4 Accessory Connector 12 pole female Cannon connector for JSHD4.
JSHK1-C 2TLA020003R0700 JSHD4 Accessory Connector 12-pole male Cannon connector for cabinet mounting.
JSHK1-A 2TLA020003R0800 JSHD4 Accessory Connector 12-pole female Cannon connector for cabinet mounting.
JSHK1-B 2TLA020003R0900 JSHD4 Accessory Connector 12-pole male Cannon connector for cable mounting.
HK40S4 2TLA020003R3500 JSHD4 Accessory Cable Spiral cable 4m and 12 leads with Cannon female connector. PUR.
HK60S4 2TLA020003R3600 JSHD4 Accessory Cable Spiral cable 6m and 12 leads with Cannon female connector. PUR.
HK5 2TLA020003R4700 JSHD4 Accessory Cable Cable 5m and 12 leads with Cannon female connector.
HK10 2TLA020003R4800 JSHD4 Accessory Cable Cable 10m and 12 leads with Cannon female connector.
HK20 2TLA020003R4900 JSHD4 Accessory Cable Cable 20 m and 12 leads with Cannon female connector.
HK16S4 2TLA020003R5000 JSHD4 Accessory Cable Spiral cable 1.6m and 12 leads with Cannon female connector.
HK20S4 2TLA020003R5100 JSHD4 Accessory Cable Spiral cable 2m and 12 leads with Cannon female connector. PUR.
HK32S4 2TLA020003R5200 JSHD4 Accessory Cable Spiral cable 3.2m and 12 leads with Cannon female connector. PUR
HK80S4 2TLA020003R5300 JSHD4 Accessory Cable Spiral cable 8m and 12 leads with Cannon female connector. PUR.
JSHD4 Anti-tamper 2TLA020005R0900 JSHD4 Accessory Other accessory Accessories JSHD4. Anti-tamper PCB. Works with top part JSHD4-2 to JSHD4-5, combined with botten part AB, AD, AF, AG, AH or AJ.
JSHD4 AA 2TLA020005R1000 JSHD4 Three-position device bottom part Bottom part with cable gland
JSHD4 AB 2TLA020005R1100 JSHD4 Three-position device bottom part Bottom part with Cannon connection
JSHD4 AC 2TLA020005R1200 JSHD4 Three-position device bottom part Bottom part with M12 connection (5 poles).
JSHD4 AD 2TLA020005R1300 JSHD4 Three-position device bottom part Bottom part with M12 connection (8 poles).
JSHD4 AE 2TLA020005R1400 JSHD4 Three-position device bottom part Bottom part with M12 connection (8 poles) and emergency stop.
JSHD4 AH 2TLA020005R1700 JSHD4 Three-position device bottom part Bottom part with cable gland and PCB with 10 screw connections
JSHD4 AJ 2TLA020005R1800 JSHD4 Three-position device bottom part Bottom part with cable gland and PCB with 16 screw connections.
JSHD4 AK 2TLA020005R1900 JSHD4 Three-position device bottom part Bottom part with Cannon connector for replacement of former Jokab JSHD4
JSHD4 AL 2TLA020005R2000 JSHD4 Three-position device bottom part Bottom part with JSM 53A and cable gland
JSHD4-1 Top part 2TLA020006R2100 JSHD4 Three-position device top part Three-position device.
JSHD4-2 Top part 2TLA020006R2200 JSHD4 Three-position device top part Three-position device incl. LEDs, front button and top button.
JSHD4-2 Top part black 2TLA020006R2201 JSHD4 Three-position device top part Three-position device incl. LEDs, front button and top button. Black.
JSHD4-3 Top part 2TLA020006R2300 JSHD4 Three-position device top part Three-position device incl. LEDs.
JSHD4-4 Top part 2TLA020006R2400 JSHD4 Three-position device top part Three-position device incl. LEDs and front button.
JSHD4-5 Top part 2TLA020006R2500 JSHD4 Three-position device top part Three-position device incl. LEDs and top button.
