เซนเซอร์วัดแรงสั่นสะเทือนมอเตอร์ แบบไร้สาย ชนิดความเร็ว

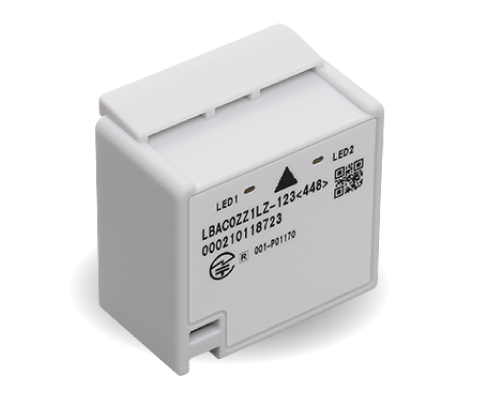

Velocity Vibration Sensor Unit – LBAC0ZZ1TF
Wireless Vibration Sensor
ติดตั้งบนอุปกรณ์ Motor หรือที่หมุนได้ เช่น ปั๊มและมอเตอร์พัดลม และตรวจจับสิ่งผิดปกติจากการสั่นสะเทือน
DimensionsL: 38mm W: 24mm H: 38mm
Weight50g (Including battery)
Communication InterfaceProprietary ISM sub-1GHz radio certified for use according to each region/country.
Measurement ParameterPeak Acceleration (top 2), Frequency pf Peak Acceleration (top 2), Peak Velocity (top 3), Frequency pf Peak Velocity (top 3), Acceleration RMS, Velocity RMS, Kurtosis, Temperature
Measurement SpecificationAbsolute Max Rating: ±30G Resolution: 28mG
Detection Frequency:
Acceleration: 10~10,000Hz
Velocity: 10~1,000Hz
Detection Direction: Z axis
Temperature: -10℃~85℃ Resolution: 0.1℃@25℃
Detection Frequency:
Acceleration: 10~10,000Hz
Velocity: 10~1,000Hz
Detection Direction: Z axis
Temperature: -10℃~85℃ Resolution: 0.1℃@25℃
Measurement AccuracyVibration: ±3dB
Temperature: ±1℃@25℃
Temperature: ±1℃@25℃
Operating EnvironmentBody (Ambient): -10℃~60℃, <90%RH (non-condensing)
Sensor (Surface): -10℃~85℃, <90%RH (non-condensing)
IP65 grade
Sensor (Surface): -10℃~85℃, <90%RH (non-condensing)
IP65 grade
Power SourceLithium thionyl chloride battery 1pc
Battery Life (reference)1.5 years (at 1 hour report interval and 25℃)
Measurement Interval1, 5, 10, 15, 30 min
1, 2, 6, 12, 24 h
1, 2, 6, 12, 24 h
Installation MethodMagnet
